SACC-E-M12MSS-4CON-M16/1,0 PE

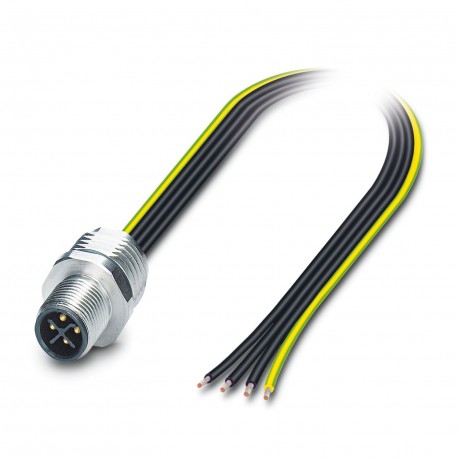

SACC-E-M12MSS-4CON-M16/1,0 PE 1037070 PHOENIX CONTACT Sensor/actuator flush-type plug, 4-pos., front/screw m..
$0.00USD
3790 dalam stok
Spesifikasi Utama
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Nota:In line with
Pengekodan:S
Dilindungi:no
Maklumat Pembekal
Produk: 0
Biasanya dihantar dalam 2-3 hari bekerja
Kualiti Dijamin
Penghantaran Pantas
Sokongan Teknikal
Spesifikasi Teknikal
| Parameter | Nilai |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Nota | In line with |
| Pengekodan | S |
| Dilindungi | no |
| Jenis kabel | UL/cUL stranded hook-up wire |
| Reka bentuk kepala | Pin |
| Nota keselamatan | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Jenis sensor | Power |
| Jenis benang | M12 |
| Panjang kabel | 1 m |
| Bebas halogen | yes |
| Jenis produk | Circular connectors (device side) |
| Voltan ujian | 6 kV |
| Jenis pemasangan | Front mounting M16 x 1.5 |
| Bahan pengedap | FKM |
| Talian isyarat AWG | 16 |
| Semakan artikel | 06 |
| Bahan sentuh | CuZn |
| Rintangan api | in acc. to UL 1581 VW1 |
| Jenis benang kepala | M12 |
| Kaedah sambungan | Individual wires |
| Soket kabel kepala | straight |
| Tork pengetatan | 3 Nm ... 4 Nm (Installation-side) |
| Bahan konduktor | Bare Cu litz wires |
| Rintangan sentuhan | ≤ 3 mΩ |
| Arus nominal IN | 12 A |
| Voltan nominal UN | 630 V |
| Nota tentang operasi | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Wayar tunggal, warna | black 1, black 2, black 3, green/yellow |
| Keratan rentas kabel | 1.31 mm² |
| Tahap pencemaran | 3 |
| Bilangan jawatan | 4 |
| Voltan lonjakan yang dinilai | 6 kV AC |
| Tahap perlindungan | IP67 |
| Bilangan soket kabel | 1 |
| Kategori voltan lampau | III |
| Jenis/kategori isyarat | Power |
| Penamaan piawai | M12 connector |
| Rintangan penebat | ≥ 100 MΩ |
| Keratan rentas konduktor | 1.31 mm² |
| Jenis sambungan kenalan | Pin |
| Bahan pembawa sentuh | PA |
| Bahan permukaan sentuh | Ni/Au |
| Penebat dawai bahan | mPPE |
| Piawaian/spesifikasi | based on IEC 61076-2-111 |
| Kitaran pemasukan/penarikan balik | > 100 |
| Bahan untuk sambungan skru | CuZn alloy, nickel-plated |
| Diameter dawai termasuk penebat | 2.2 mm |
| Suhu ambien (operasi) | -40 °C ... 105 °C (cable, fixed installation) |
| Penarafan mudah terbakar mengikut UL 94 | V0 |
| Voltan yang dinilai dalam acc. dengan IEC 61076-2-101 | 630 V |
Penerangan Produk
Conect. plug. to be apar. front wall, Power, 4-pole, Male, straight, M12, encoding: S, free cable end, Front mounting, M16 x 1.5, Single stranded wires, UL/cUL switching twisted wire, Alternative prod
