PD-2512

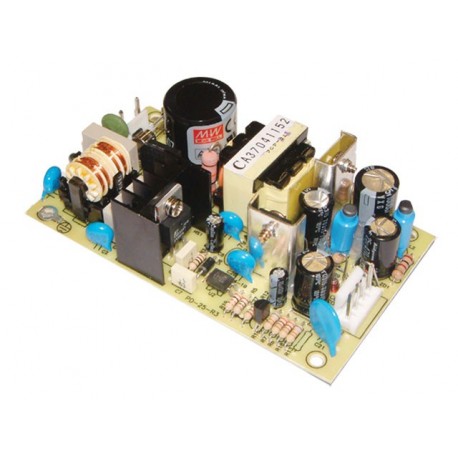

PD-2512 MEANWELL AC-DC Dual output Open frame Power supply, Output 12VDC / 1.2A -12VDC / 1.2A
$0.00USD
4830 dalam stok
Spesifikasi Utama
Nama:PD-2512
Format:Open Format
Siri:PD-25
Keluaran 1:-12
Maklumat Pembekal
MEANWELL
Produk: 6448
Biasanya dihantar dalam 2-3 hari bekerja
Kualiti Dijamin
Penghantaran Pantas
Sokongan Teknikal
Spesifikasi Teknikal
| Parameter | Nilai |
|---|---|
| Nama | PD-2512 |
| Format | Open Format |
| Siri | PD-25 |
| Keluaran 1 | -12 |
| Keluaran 2 | +12 |
| Kelulusan | CE, UL |
| Kuasa (W) | 24,00 |
| Subformat | 4.2"x2.4" |
| Lebar (mm) | 61.00 |
| Tinggi (mm) | 28.00 |
| Input AC Maks | 264,00 |
| Input AC Min | 85,00 |
| Aplikasi | Industrial, Telecommunications |
| Pengilang | MEAN WELL |
| Jenis produk | Power supply AC/DC |
| Pengasingan (V) | 3.000,00 |
| Kuasa Puncak (W) | Twenty four |
| Penyambung input | Plug-in |
| Kekerapan input | 50 Hz, 60 Hz |
| Panjang/Latar Belakang | 107.00 |
| Huraian Panjang | Power supply in an Open Format with 2 outputs.Open format (Open-Frame).Range universal Input full85-264vac47-63Hz.Outputs:-12vdc:Minimum intensity of output0.1 To.Maximum output current1,2Amps.+12vdc:Minimum intensity of output0.1 To.Maximum output current1,2Amps.Power:24W.Efficiency typical:74%.Consumption without load<0.5 W.Working temperature: from-Tenup+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:107 x 61 x 28.2 years of warranty.Manufacturer: MEAN WELL.These sources need to have always the minimum load shown for each output. If we don't have those minimum loads the output will be unstable or the source may not come to light. You can connect a load resistance to ensure that you always have the minimum load.Check that all the outputs do not exceed the maximum output of the power supply. |
| Penyambung output | Plug-in |
| Jenis Kemasukan CA | Single-phase |
| Waranti (Tahun) | 2,00 |
| Negara Asal | China |
| Anda Perlu Muat Minimum | Yes |
Penerangan Produk
More details
Ciri-ciri Utama
- Kualiti gred industri
- Patuh RoHS
- Sijil CE
- Jaminan 1 tahun
Butiran Teknikal
Power supply in an Open Format with 2 outputs.
Dokumen Produk
Lembaran Data
Spesifikasi teknikal dan data prestasi
Manual Pengguna
Panduan pemasangan dan operasi
