ME MAX 22,5-KIT-3-3-7035+6MSTBT4

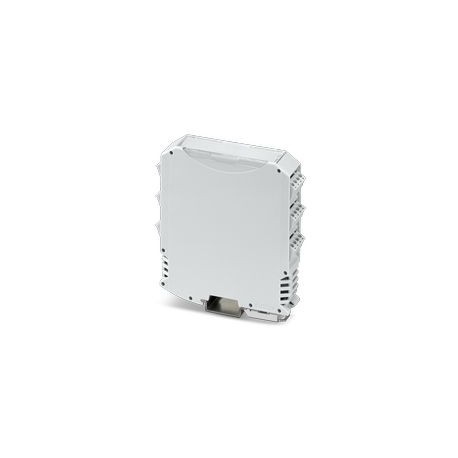

ME MAX 22,5-KIT-3-3-7035+6MSTBT4 1342903 PHOENIX CONTACT Rail housing, for DIN rail mounting, colour: lumino..
$0.00USD
4140 dalam stok
Spesifikasi Utama
:incl. 6 PCB connectors, 4-pos., screw connection, for 2.5 mm², nominal current: 12 A, 320 V
Jenis:for mounting on a DIN rail
Warna:light grey (7035)
Kedalaman:113.65 mm
Maklumat Pembekal
Produk: 0
Biasanya dihantar dalam 2-3 hari bekerja
Kualiti Dijamin
Penghantaran Pantas
Sokongan Teknikal
Spesifikasi Teknikal
| Parameter | Nilai |
|---|---|
| incl. 6 PCB connectors, 4-pos., screw connection, for 2.5 mm², nominal current: 12 A, 320 V | |
| Jenis | for mounting on a DIN rail |
| Warna | light grey (7035) |
| Kedalaman | 113.65 mm |
| Lebar | 22.5 mm |
| Ketinggian | 99 mm |
| Jeneral | Please observe the assembly instructions available in the download area. |
| Jenis perumahan | DIN rail housing |
| Jenis produk | Stackable housing set |
| Jenis pemasangan | DIN rail mounting |
| Ketebalan PCB | 1.4 mm ... 1.8 mm |
| Siri perumahan | ME-MAX |
| Bilangan baris | 3 |
| Bahan perumahan | Polyamide |
| Kaedah sambungan | Screw connection with tension sleeve |
| Kedudukan pemasangan | Vertical (horizontal DIN rail) |
| Jumlah permukaan PCB | 6800 mm² |
| Jenis pemasangan PCB | Latching |
| Jenis pembungkusan | packed in cardboard |
| Lukisan dimensi | |
| Bilangan jawatan | 24 |
| Jenis pembungkusan luar | Carton |
| Bilangan pemegang PCB | 1 |
| Kod IP maksimum untuk dicapai | IP20 |
| Ciri-ciri permukaan | untreated |
| Bilangan jawatan maksimum | 24 (pitch: 5 mm) |
| Terdapat bukaan pengudaraan | yes |
| Suhu ambien (pemasangan) | -5 °C ... 100 °C |
| Suhu ambien (operasi) | -40 °C ... 105 °C (depending on power dissipation) |
| Kedalaman dari tepi atas rel DIN | 107 mm |
| Kelembapan relatif (penyimpanan/pengangkutan) | 80 % (maximum) |
| Penarafan mudah terbakar mengikut UL 94 | V0 |
| Suhu ambien (penyimpanan/pengangkutan) | -40 °C ... 55 °C |
Penerangan Produk
DIN rail housing, for mounting on a DIN rail, color: light grey (7035), width: 22.5 mm, height: 99 mm, depth: 113.65 mm, incl. 6 PCB connectors, 4-pos., screw connection, for 2.5 mm2, nominal current:
Ciri-ciri Utama
- Kualiti gred industri
- Patuh RoHS
- Sijil CE
- Jaminan 1 tahun
