GSM160B20-R7B

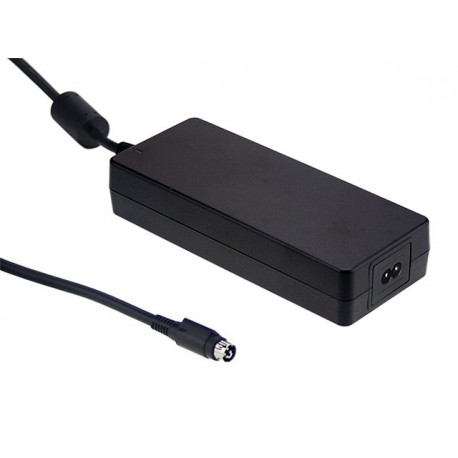

GSM160B20-R7B MEANWELL AC-DC Medical desktop adaptor with Active PFC, Input 2 pin IEC320-C8 socket, Output 2..
$0.00USD
4953 dalam stok
Spesifikasi Utama
Nama:GSM160B20-R7B
Format:Desktop
Siri:GSM160B
Kelulusan:CE, UL
Maklumat Pembekal
MEANWELL
Produk: 6448
Biasanya dihantar dalam 2-3 hari bekerja
Kualiti Dijamin
Penghantaran Pantas
Sokongan Teknikal
Spesifikasi Teknikal
| Parameter | Nilai |
|---|---|
| Nama | GSM160B20-R7B |
| Format | Desktop |
| Siri | GSM160B |
| Kelulusan | CE, UL |
| Kuasa (W) | 160,00 |
| Subformat | Encapsulated |
| Lebar (mm) | Seventy two |
| Tinggi (mm) | Thirty five |
| Input AC Maks | 264,00 |
| Input AC Min | 80,00 |
| Aplikasi | Industrial, Medical, Telecommunications |
| Pengilang | MEAN WELL |
| Jenis produk | Power supply AC/DC |
| Pengasingan (V) | 4.000,00 |
| Voltan keluaran | 20,00 |
| Kuasa Puncak (W) | One hundred sixty |
| Penyambung input | IEC 320-C8 |
| Kekerapan input | 50 Hz, 60 Hz |
| Panjang/Latar Belakang | One hundred seventy five |
| Huraian Panjang | Source switched type desktop adapter with PFC function.Fuentrecertified for medical applications2x MOPP (patient protection).Feeder for connection to a wall outlet.Range of universal input80-264vac47-63Hz.Output voltage20vdc.Output intensity8A. Range of output current 0-8A according to demand load.Power:160W.Efficiency typical:To 92.5%.Factor corrector, power>0,93to 230vac at full load.LED Indicator of correct operation.Class ll without the taking of land.Consumption without load<0,15 W.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:175 x 72 x 35.3 years of warranty.Manufacturer: MEAN WELL.Series GSM-B are commuting sources in format desktop with input connector europeanIEC320-C8and output connector R7B DIN 4p(Level Vl).The series GSM160 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency. |
| Penyambung output | R7B DIN 4p |
| Jenis Kemasukan CA | Single-phase |
| Waranti (Tahun) | 3,00 |
| Negara Asal | China |
Penerangan Produk
More details
Ciri-ciri Utama
- Kualiti gred industri
- Patuh RoHS
- Sijil CE
- Jaminan 1 tahun
Butiran Teknikal
Source switched type desktop adapter with PFC function.
Dokumen Produk
Lembaran Data
Spesifikasi teknikal dan data prestasi
Manual Pengguna
Panduan pemasangan dan operasi
