FL SWITCH SMCS 16TX

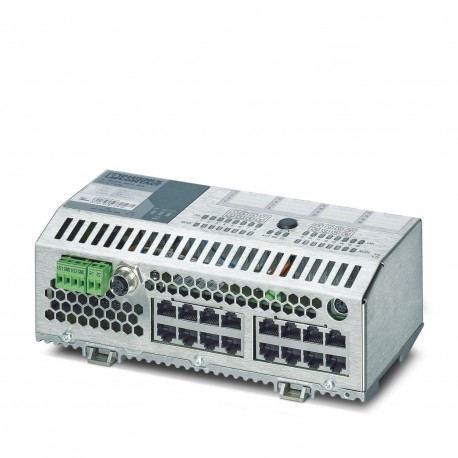

FL SWITCH SMCS 16TX 2700996 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
4882 dalam stok
Spesifikasi Utama
:200.07 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF:406.72 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Jenis:Block design
Warna:gray aluminum
Maklumat Pembekal
Produk: 0
Biasanya dihantar dalam 2-3 hari bekerja
Kualiti Dijamin
Penghantaran Pantas
Sokongan Teknikal
Spesifikasi Teknikal
| Parameter | Nilai |
|---|---|
| 200.07 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| MTTF | 406.72 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Jenis | Block design |
| Warna | gray aluminum |
| Kedalaman | 69 mm |
| Lebar | 214 mm |
| Ketinggian | 110 mm |
| Pengurusan | Web-based management (HTTP) |
| Lebihan | MRP (Media Redundancy Protocol) |
| LED isyarat | Supply voltage, data transmission, error, link, activity |
| Jenis produk | Switch |
| Bahagian ujian | 500 V DC 1 min. |
| Jenis pemasangan | DIN rail mounting |
| Pelepasan hingar | EN 61000-6-3 |
| Kekebalan bunyi bising | EN 61000-6-2:2005 |
| Keluarga produk | Managed Switch SMCS |
| Paparan status | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Fungsi asas | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Bilangan saluran | 16 (RJ45 ports) |
| Riak sisa | 3.6 VPP(within the permitted voltage range) |
| Semakan artikel | 06 |
| Fungsi penapis | Quality of Service (4 priority classes) |
| Bahan perumahan | Stainless steel 1.4301 |
| Kelas perlindungan | III (VDE 0106) |
| Panjang pelucutan | 7 mm |
| Kaedah sambungan | RJ45 |
| Jadual alamat MAC | 16000 |
| Pelayar yang disokong | Internet Explorer 5.5 or higher |
| Kelajuan penghantaran | 10/100 Mbps |
| Penggunaan semasa | 190 mA |
| Plat asas bahan | Die-cast aluminum, corrosion-resistant |
| Voltan bekalan (DC) | 24 V DC (redundant) |
| Panjang penghantaran | 100 m (per segment) |
| Medium penghantaran | Copper |
| Fungsi tambahan | BootP |
| Tahap perlindungan | IP20 |
| Fungsi diagnostik | RMON History |
| Julat voltan bekalan | 18 V DC ... 32 V DC |
| Penyegerakan masa | SNTP |
| Fizik penghantaran | Copper |
| Getaran (operasi) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Sambungan bekalan kuasa | Via COMBICON, max. conductor cross section 2.5 mm² |
| Tekanan udara (operasi) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Fungsi peranti PROFINET | PROFINET device |
| Kelas pematuhan PROFINET | Conformance-Class B |
| Keratan rentas konduktor AWG | 24 ... 12 |
| Penggunaan arus biasa | 200 mA (at US= 24 V DC) |
| Keserasian elektromagnetik | Conformance with EMC Directive 2014/30/EU |
| Nota tentang kaedah sambungan | Auto negotiation and autocrossing |
| Keratan rentas konduktor, tegar | 0.2 mm² ... 2.5 mm² |
| Arus kawalan sentuhan isyarat | 190 mA (maximum) |
| Voltan kawalan sentuhan isyarat | 24 V (typical) |
| Suhu ambien (operasi) | -40 °C ... 70 °C (non-condensing) |
| Pematuhan dengan arahan EMC | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Tekanan udara (penyimpanan/pengangkutan) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Kelembapan yang dibenarkan (operasi) | 5 % ... 95 % (non-condensing) |
| Petunjuk status dan diagnostik | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Keratan rentas konduktor, fleksibel | 0.2 mm² ... 2.5 mm² |
| Protokol Penemuan Lapisan Pautan (LLDP) | As per protocol 802.2 |
| Suhu ambien (penyimpanan/pengangkutan) | -40 °C ... 85 °C |
| Kelembapan yang dibenarkan (penyimpanan/pengangkutan) | 5 % ... 95 % (non-condensing) |
| Pelesapan kuasa maksimum untuk keadaan nominal | 4.56 W |
| Bebas daripada bahan yang boleh menjejaskan penggunaan salutan | Yes |
Penerangan Produk
Smart Managed Compact Ethernet Switch with 16 10/100 MBit/s RJ45 ports
Ciri-ciri Utama
- Kualiti gred industri
- Patuh RoHS
- Sijil CE
- Jaminan 1 tahun
