7ML1106-2BB20-0R

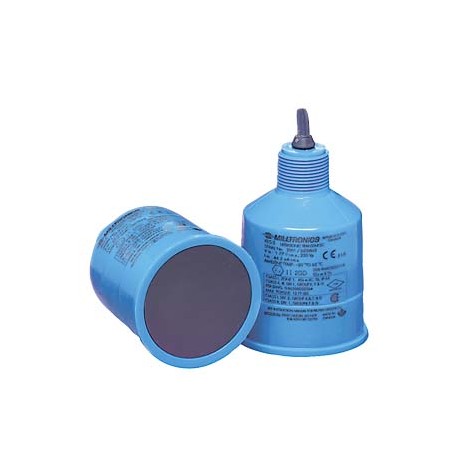

7ML1106-2BB20-0R SIEMENS EchoMax XRS-5 Ultrasonic level transducer: continuous, non-contact, 8 m (26 ft) ran..
$0.00USD
4163 dalam stok
Spesifikasi Utama
:VersionClassificationeClass1227-20-05-06eClass1427-20-05-06eClass627-20-05-06eClass7.127-20-05-06eClass827-20-05-06eClass927-20-05-06eClass9.127-20-05-06ETIM7EC003001ETIM8EC003001ETIM9EC003001
EAN:Not available
UPC:Not available
ETIM:7
Maklumat Pembekal
SIEMENS
Produk: 367174
Biasanya dihantar dalam 2-3 hari bekerja
Kualiti Dijamin
Penghantaran Pantas
Sokongan Teknikal
Spesifikasi Teknikal
| Parameter | Nilai |
|---|---|
| VersionClassificationeClass1227-20-05-06eClass1427-20-05-06eClass627-20-05-06eClass7.127-20-05-06eClass827-20-05-06eClass927-20-05-06eClass9.127-20-05-06ETIM7EC003001ETIM8EC003001ETIM9EC003001 | |
| EAN | Not available |
| UPC | Not available |
| ETIM | 7 |
| eKelas | 12 |
| Kod Kumpulan | R3P0 |
| Nombor SCIP | |
| Faktor Logam | None |
| Kumpulan Produk | 4710 |
| Kelas produk | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Unit Kuantiti | 1 Piece |
| Kod Komoditi | 90269000 |
| Keluarga produk | EchoMax XRS-5 |
| Berat Bersih (kg) | 1,500 Kg |
| Negara asal | Canada |
| LKZ_FDB/ ID Katalog | FI01-4 |
| Kuantiti Pembungkusan | 1 |
| Penerangan Produk | EchoMax XRS-5 Ultrasonic level transducer: continuous, non-contact, 8 m (26 ft) range, for liquids and slurries. Mounting thread: R 1" ((BSPT), EN 10226) Cable length: 10 m (32.81 ft) Facing: PTFE (flange versions) Approvals: CSA Class I, Div. 2, Groups A, B, C, D; CSA Class II, Div. 1, Groups E, F, G; FM Class I, Zone 1, AEx m IIC, T6; FM Class II, III, Div. 1, Groups E, F, G T6; ATEX II 2GD Ex mb IIC T6 Gb, Ta = -20°C to +65°C; ATEX II 2GD Ex tb IIIC T85°C Db; UKEX II 2GD Ex mb IIC T6 Gb, Ta = -20°C to +65°C; UKEX II 2GD Ex tb IIIC T85°C Db; IECEx Ex mb IIC T6 Gb, Ta = -20°C to +65°C; IECEx Ex tb IIIC T85°C Db; INMETRO Ex mb IIC T6 Gb, IP66/IP68, -20°C ≤ Ta ≤ +65°C; INMETRO Ex tb IIIC T85°C Db, IP66/IP68; CE, UKCA, RCM, KC, EAC Ex . . Flange: . JIS10K 4B style |
| Kitaran Hayat Produk (PLM) | PM300:Active Product |
| Peraturan Kawalan Eksport | ECCN : EAR99 / AL : N |
| Surcaj untuk Bahan Mentah | None |
| Unit ukuran saiz pakej | Not available |
| Nombor Artikel (Nombor Berhadapan Pasaran) | 7ML1106-2BB20-0R |
| Anggaran masa penghantaran (Hari Bekerja) | 33 Day/Days |
| Obligasi Pengambilan Balik WEEE (2012/19/EU) | Yes |
| Kumpulan Harga Khusus Wilayah / Kumpulan Harga Ibu Pejabat | 8L1 / 8L1 |
| Pematuhan dengan sekatan bahan mengikut arahan RoHS | Since: 10.01.2003 |
| REACH Perkara 33 Kewajipan untuk memaklumkan mengikut senarai calon semasa | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Penerangan Produk
EchoMax XRS-5 Ultrasonic Level Sensor: Continuous, non-contact measurement, range 8 m (26 ft) for liquids and slurries. "Process connection thread: 1"" BSP." Connection cable length: 10 m. Coating: Te
Ciri-ciri Utama
- Kualiti gred industri
- Patuh RoHS
- Sijil CE
- Jaminan 1 tahun
Dokumen Produk
Lembaran Data
Spesifikasi teknikal dan data prestasi
Manual Pengguna
Panduan pemasangan dan operasi
